OMR Series Orbital Motor Versatile Hydraulic Motor
Features
OMR hydraulic motors are engineered for reliable, efficient operation across diverse applications. As versatile multi-purpose motors, they deliver optimized torque, robust durability, and high efficiency—making them ideal for agricultural, industrial, and construction machinery.
Specifications
|
Displacement (ml/r)
|
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
Flow
(LPM) |
Continuous |
40 |
53 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
| Intermittent |
46 |
58 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
68 |
Speed
(RPM) |
Continuous |
750 |
760 |
653 |
551 |
440 |
344 |
276 |
220 |
175 |
140 |
110 |
| Intermittent |
863 |
832 |
766 |
646 |
516 |
404 |
323 |
258 |
205 |
162 |
128 |
Pressure
(Mpa) |
Continuous |
14 |
14 |
14 |
14 |
14 |
14 |
12.5 |
11 |
9 |
9 |
8 |
| Intermittent |
17 |
17 |
17 |
17 |
17 |
17 |
15 |
13 |
11 |
10 |
9 |
Torque
(N·m) |
Continuous |
89 |
112 |
142 |
178 |
223 |
286 |
318 |
350 |
360 |
418 |
464 |
| Intermittent |
108 |
136 |
172 |
216 |
270 |
346 |
382 |
413 |
400 |
464 |
500 |
1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
Product Tags:
|
|

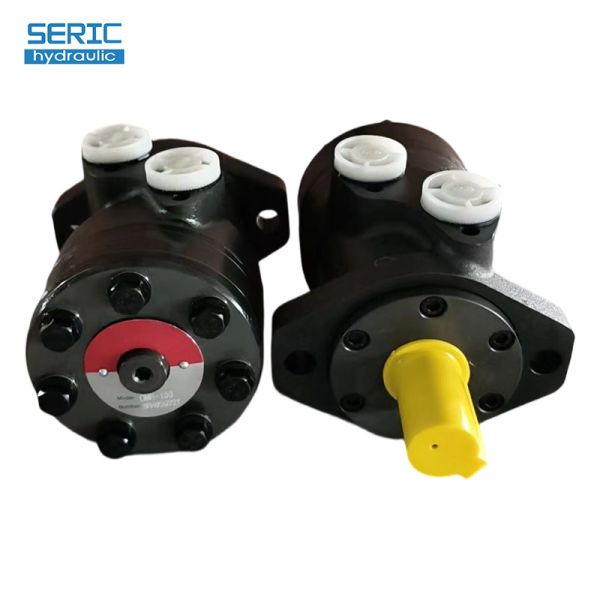

OMR Series Orbital Motor Versatile Hydraulic Motor Images
|
